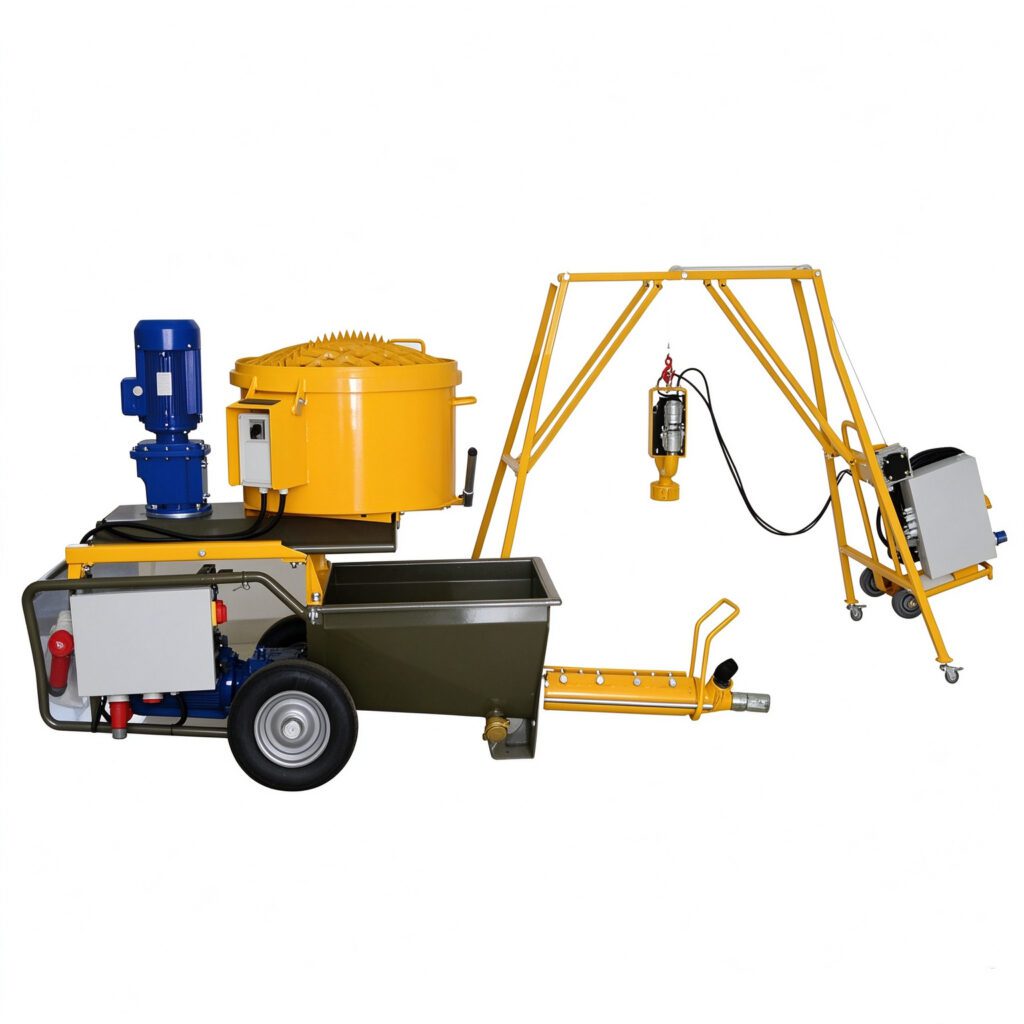

PRO Screw Pump
PRO screw pump with 120L mixer for mortar spraying and grouting; conveying height 40 m, distance 80 m (EV variable speed / 2V two-speed).
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Shanghai Huahongxin Fluid Equipment Co., Ltd

| Parameter | EV | 2V |
| MODEL | EV | 2V |
| MOTOR POWER | 5.5KW | 4.5/5.5KW |
| VOLTAGE | 380V | |
| FLOW | 8~45L/MIN | 20~40L/MIN |
| CONVEY PRESSURE | 25~40BAR | |
| SUPPORT MAX PARTICLE SIZE | 6MM | |
| LOADING HEIGHT | 55CM | |
| HOPPER CAPACITY | 120L | |
| MIXER MOTOR POWER | 2.2KW-380V | |
| MIXER CAPACITY | 120L | |
| CONVEYING HEIGHT | 40M | |
| CONVEYING DISTANCE | 80M | |
| SIZE | 230*80*65CM | |
| WEIGHT | 250KG | |
EV: Continuously variable speed. 2V: Two-speed.
Shotcreting and grouting equipment suitable for the spraying and pumping of materials such as site-mixed cement mortar, dry-mix mortar, gypsum mortar, self-leveling compounds, fire-resistant mortar, crack-resistant mortar, polymer mortar, trenchless repair mortar, anti-corrosion mortar, ECC (Engineered Cementitious Composites), UHPC (Ultra-High Performance Concrete), and lightweight mortar.
